20MIN
CHANGE OVERS
99%
KILL RATE
1/7
Kill in even more conditions
Achieve the highest weed seed elimination, particularly in cereals like barley and high capture scenarios like legumes, with a 99% kill rate using the AeroIMPACT 3 system.
Kill rate: Annual Ryegrass Lolium Rigidum 99%
Power: High
2/7

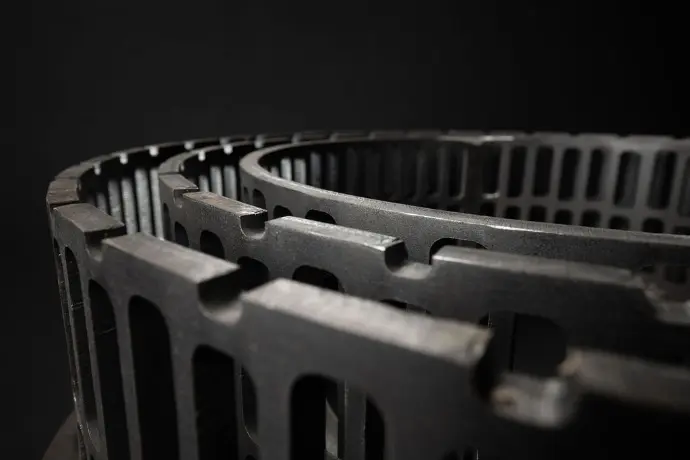

AeroIMPACT 3 Screen
Our standard mill tech packs a punch with 4 Modes of Action to consistently devitalise even the hardest to kill of weed seeds; Annual Ryegrass Lolium Rigidium.
Compatible with: AeroIMPACT 3 rotors & flails.
Kill rate: Annual Ryegrass Lolium Rigidum 99%
Power: High
3/7

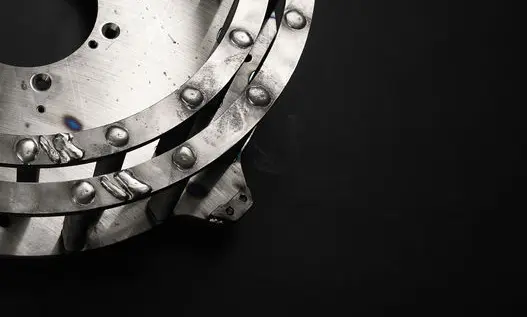

AeroIMPACT 3 Rotor
The AeroIMPACT 3 rotor is designed to maximise weed termination efficiency, featuring aerodynamic rotor bars that minimise no-load power to just 24kw, ensuring energy is focused on seed termination.
At 300km an hour would you rather drive a truck or a Ferrari?
4/7
Bean Screen
The chaff & stalk eater, the Pulse Screen is designed for crops with high volume, large and tough chaff to process.
Kill rate: Annual Ryegrass Lolium Rigidum 90-95%
Power: Medium
Compatible with: AeroIMPACT 3 rotors & flails
5/7
Bypass Screen
Designed as a low power option, to target volunteers with a limited weed control. Ideal for extreme harvesting conditions, or crops with low pressure of weeds.
Kill rate: Annual Ryegrass Lolium Rigidum 50%
Power: Low
Compatible with: AeroIMPACT 3 rotors & flails
6/7
Eat stones for breakfast
The flexible flails in our system are meticulously balanced and fitted into a precision-engineered spindle, ensuring flawless operation at 2950 RPM. This design crushes, shears, grinds, and impacts weed seeds against screens with remarkable efficiency.
7/7
Insane performance

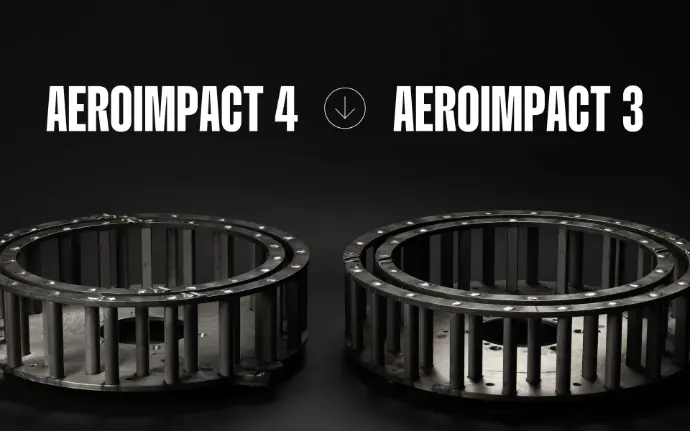

AeroIMPACT 4
The latest in efficiency built on the science of mechanically killing weeds. By tightening the tolerance between screen and rotor we’ve perfected each phase of termination, increasing capacity while maintaining kill.
Kill rate: Annual Ryegrass Lolium Rigidum 97%
Power: Medium
Compatible with: AeroIMPACT 4 rotors & flails
PERFECTING THE BALANCE OF KILL RATE, POWER & WEAR.
The RRP for a Seed Terminator is $120,000 AUD fitted, depending on make and model.
Our Early Order Program is the best time of year to lock in savings on your new Seed Terminator.

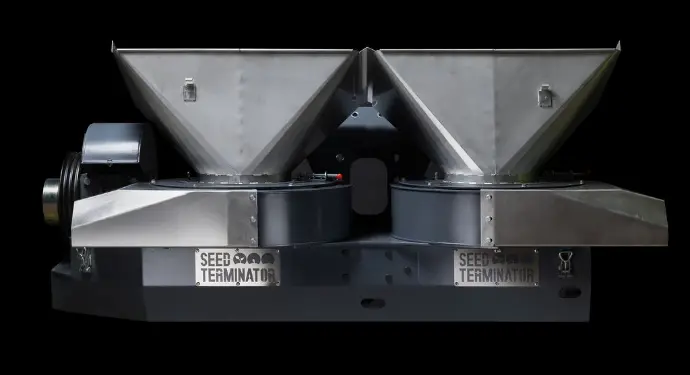

The Seed Terminator includes

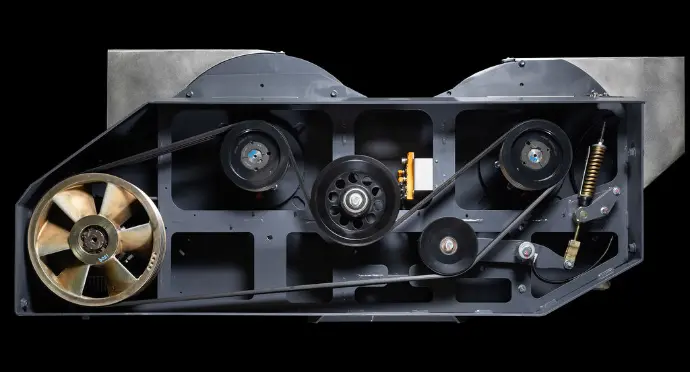

- Mechanical Drive
- Chassis
- Latest AeroIMPACT mill tech
- Magnet tray
- In cab monitoring system
Deep research & development in this space shows that the energy needed to destroy tiny seeds is high, if you are not using power you are not killing seeds. We estimate it will require 80-100 horsepower.
Yes, we aim for this to be a future proof technology platform, able to slot in the latest mill technology available in two or five years' time.
7120, 8120, 9120, 7230, 8230, 9230, 7240, 8240, 9240, 7250, 8250, 9250 (WITHOUT MAV) + INTERNAL CHOPPER
Can fit to 7010, 8010 and 9010 but need to upgrade the chopper drive clutch (at dealership).
9250 without factory MAV will require an left hand fuel tank change, 400L tank only.
The Seed Terminator comes with our 12 month driveline warranty and a 12 month warranty period covering all components other than wear items so there's nothing holding you back. From the Original Equipment Manufacturer (OEM) the Seed Terminator is looked at as an attachment and the warranty will not be affected by the installation of the Seed Terminator.
Mark Adams, WA
Mark Adams of Yaralla joins us in spectacular Woogennellup, Western Australia, near the Stirling Range National Park.
Mark runs through his family operation, targeting his ryegrass with multiple strategies including Seed Terminator's attached to both of his Case IH combines.
Mark joined Nick in 2014 with the original prototype UniSA PhD machine, adding a Seed Terminator to his operation in 2017 and then trading the 2012 prototype out for a new Terminator in 2021.
Funnily enough, the unit is still going strong over a decade later.
Real time monitoring
Our in cab display monitors mill speeds, bearing gearbox temperatures, wear vibration sensors and blockage sensors.
SmartAlarm
Our advanced monitoring system comes with the new SmartAlarm technology tethering the Terminator operating speed to the combine, removing any alarms due to drops in the engine.
Magnet Tray for Metal Objects
Our patented Magnet Tray comes as standard because we know rocks aren't the issue, steel is.
01
Efficient by design
Custom designed German manufactured spiral bevel gearbox that runs at a low 1580RPM without the complication of a cooling system.
02
Upgradeable with easy access
Designed to be easy to live with.
03
Future Proof
New mill technology stays compatible with machines. Plus mill options for tough conditions.
04
Quick, Easy Servicing
Easy-access design allows for quick, plug & play change-outs for upgrades, repairs and maintenance.
SPECIFICATIONS
Can fit to 7010, 8010 and 9010 but need to upgrade the chopper drive clutch (at dealership).
9250 without factory MAV will require an left hand fuel tank change, 400L tank only.
Almost! Were working on making the Seed Terminator CTF compatible, call our harvester specialist for details. Please note when fitting the Case drive line to power the Seed Terminator, the rear tyres on Case IH combines need to be moved out, to allow tyre clearance for turning.
The Seed Terminator includes
- Mechanical Drive
- Chassis
- Latest AeroIMPACT mill tech
- Magnet tray
- In cab monitoring system
Installation timing on average takes a total of 16 man-hours or one 8 hour day for two people

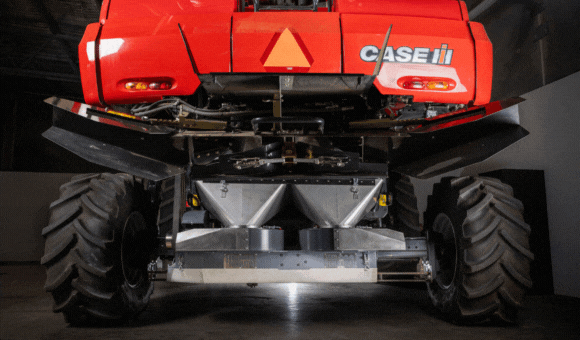

Seed Terminator will bolt to rear hitch plate. Please note when fitting the Case drive line to power the Seed Terminator, the rear tyres on Case combines need to be moved out, to allow tyre clearance for turning.
Can fit to 7010, 8010 and 9010 but need to upgrade the chopper drive clutch (at dealership).
9250 without factory MAV will require an left hand fuel tank change, 400L tank only.
The Seed Terminator comes with our 12 month driveline warranty and a 12 month warranty period covering all components other than wear items so there's nothing holding you back. From the Original Equipment Manufacturer (OEM) the Seed Terminator is looked at as an attachment and the warranty will not be affected by the installation of the Seed Terminator.
Chat to an existing Seed Terminator farmer
Ever wondered how a Seed Terminator works in real life? Chat with a local farmer and get the inside scoop directly from the source.
Damien Schneider, Culcairn, NSW
