20MIN
CHANGE OVERS
99%
KILL RATE
1/7
Kill in even more conditions
Achieve the highest weed seed elimination, particularly in cereals like barley and high capture scenarios like legumes, with a 99% kill rate using the AeroIMPACT 3 system.
Kill rate: Annual Ryegrass Lolium Rigidum 99%
Power: High
2/7

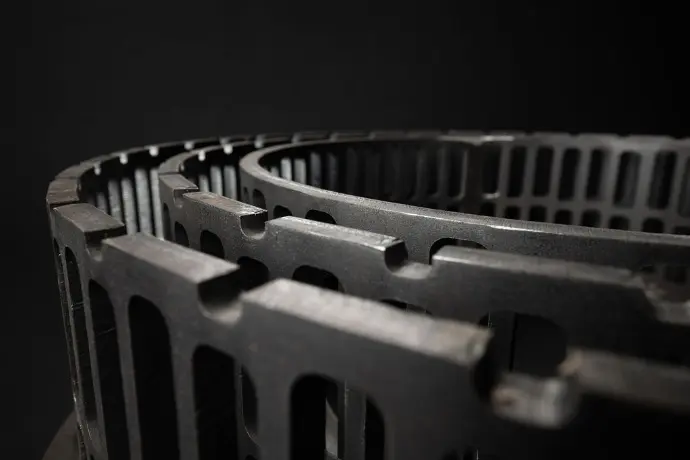

AeroIMPACT 3 Screen
Our standard mill tech packs a punch with 4 Modes of Action to consistently devitalise even the hardest to kill of weed seeds; Annual Ryegrass Lolium Rigidium.
Compatible with: AeroIMPACT 3 rotors & flails.
Kill rate: Annual Ryegrass Lolium Rigidum 99%
Power: High
3/7

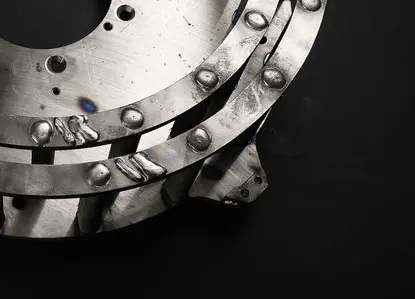

AeroIMPACT 3 Rotor
The AeroIMPACT 3 rotor is designed to maximise weed termination efficiency, featuring aerodynamic rotor bars that minimise no-load power to just 24kw, ensuring energy is focused on seed termination.
At 300km an hour would you rather drive a truck or a Ferrari?
4/7
Bean Screen
The chaff & stalk eater, the Pulse Screen is designed for crops with high volume, large and tough chaff to process.
Kill rate: Annual Ryegrass Lolium Rigidum 90-95%
Power: Medium
Compatible with: AeroIMPACT 3 rotors & flails
5/7
Bypass Screen
Designed as a low power option, to target volunteers with a limited weed control. Ideal for extreme harvesting conditions, or crops with low pressure of weeds.
Kill rate: Annual Ryegrass Lolium Rigidum 50%
Power: Low
Compatible with: AeroIMPACT 3 rotors & flails
6/7
Eat stones for breakfast
The flexible flails in our system are meticulously balanced and fitted into a precision-engineered spindle, ensuring flawless operation at 2950 RPM. This design crushes, shears, grinds, and impacts weed seeds against screens with remarkable efficiency.
7/7
Insane performance

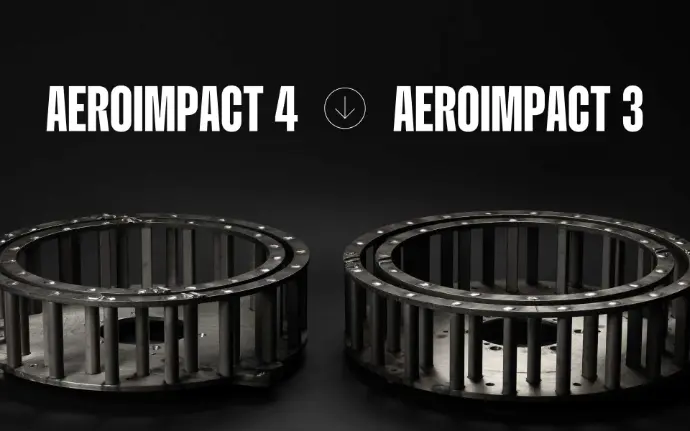

AeroIMPACT 4
The latest in efficiency built on the science of mechanically killing weeds. By tightening the tolerance between screen and rotor we’ve perfected each phase of termination, increasing capacity while maintaining kill.
Kill rate: Annual Ryegrass Lolium Rigidum 97%
Power: Medium
Compatible with: AeroIMPACT 4 rotors & flails
PERFECTING THE BALANCE OF KILL RATE, POWER & WEAR.

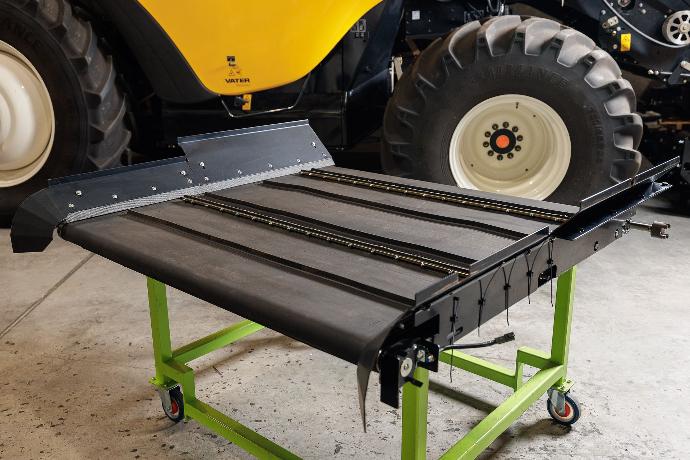

The Dynamic Straw Streamliner or DSS ensures complete separation of straw and chaff to minimise MOG being processed by the Seed Terminator resulting in fuel savings, reduction in engine load and improved residue system handling.

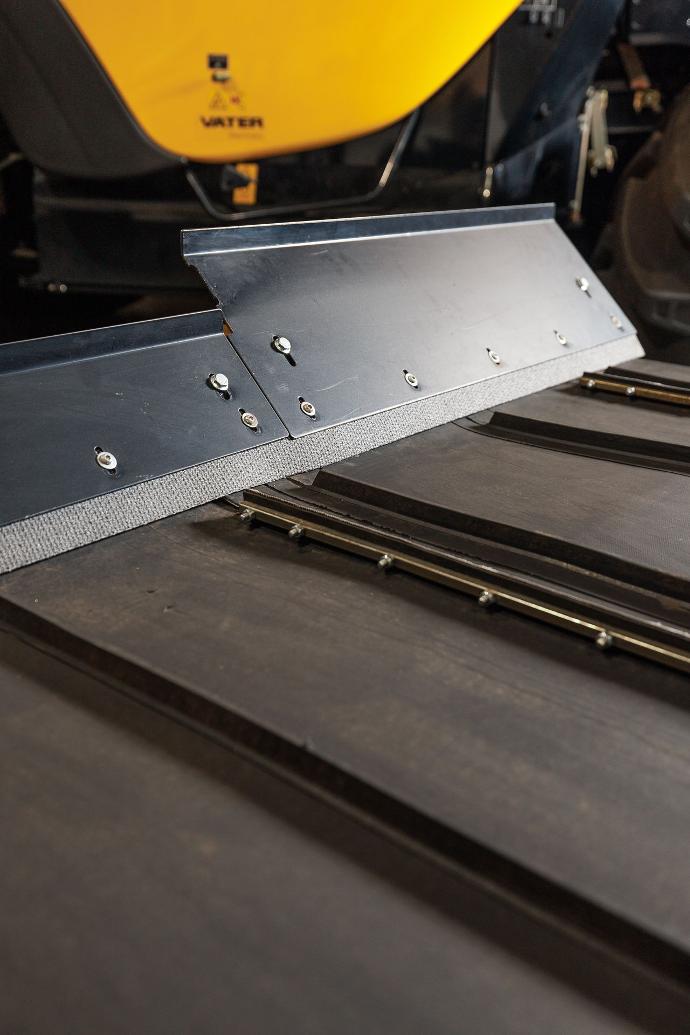

Featuring an extended draper belt in the back of the New Holland harvester to assist in carrying all residue from the discharge beater to the chopper.
Driven by the hydraulic motor used to drive the PSD (for Opti-Spread machines) or driven by the infeed roller for standard. The DSS fits to all Seed Terminators on New Holland CR models with the OEM Standard residue systems (standard or Opti-Spread), it is not compatible with aftermarket options.
The new SmartAlarm technology tethers the Terminator operating speed to the combine, removing any alarms due to drops in the engine.

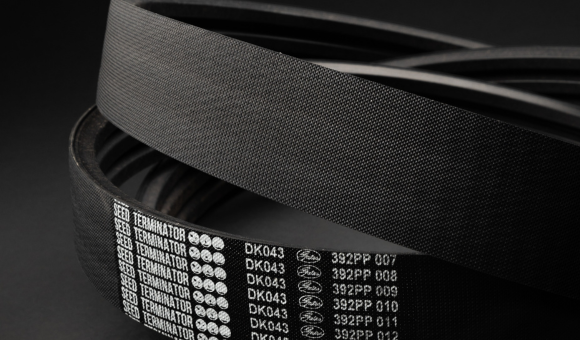

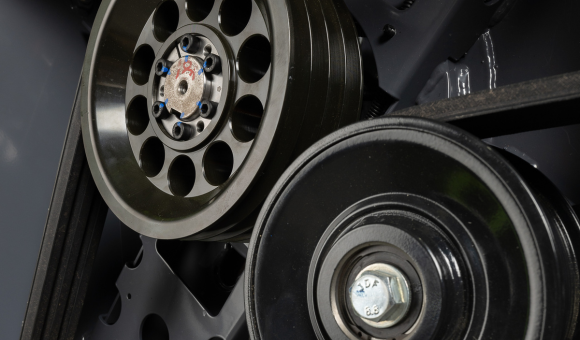

Less belts, more drive.
Moving to a single serpentine belt to drive both mills, means superior drive performance
Chopper Home
The Seed Terminator SmoothFEED 2 allows the chopper to operate in
the factory position for improved integration.
Allowing the chopper to resume its factory position improves the straw material flow, for smoother operation.
The RRP for a Seed Terminator is $140,000 AUD fitted, depending on make and model. For the New Holland Seed Terminators we recommend installing our Dynamic Straw Streamliner (DSS) to ensure full separation of the straw fraction.
Our Early Order Program is the best time of year to lock in savings on your new Seed Terminator.

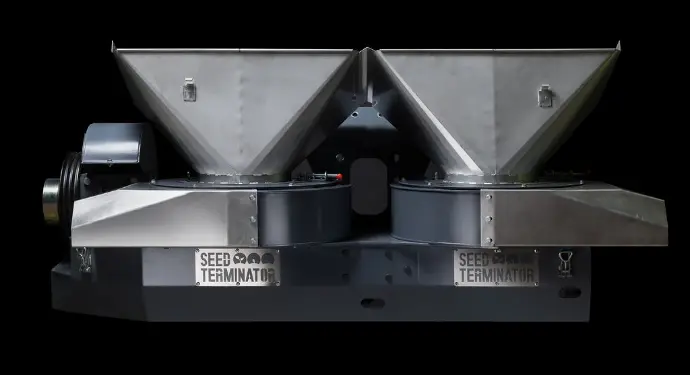

The Seed Terminator includes
- Mechanical Drive
- Chassis
- Latest AeroIMPACT mill tech
- Magnet tray
- In cab monitoring system
Deep research & development in this space shows that the energy needed to destroy tiny seeds is high, if you are not using power you are not killing seeds. We estimate it will require 80-100 horsepower.
Yes, we aim for this to be a future proof technology platform, able to slot in the latest mill technology available in two or five years' time.
CR 9090, 8090, 1090, 8.90, 9.90, 10.90
The Seed Terminator simply bolts onto the hitch.
The Seed Terminator comes with our 12 month driveline warranty and a 12 month warranty period covering all components other than wear items so there's nothing holding you back. From the Original Equipment Manufacturer (OEM) the Seed Terminator is looked at as an attachment and the warranty will not be affected by the installation of the Seed Terminator.
The future of weed control
Seed Terminator is on a mission to change agriculture globally.
Dr Nick Berry shares why mechanical weed control is integral to the future of farming and discusses the sustainability of herbicide applications and preservation of the chemicals that allow farmers to produce enough food to feed the world.
Real time monitoring
Our in cab display monitors mill speeds, bearing gearbox temperatures, wear vibration sensors and blockage sensors.
SmartAlarm
Our advanced monitoring system comes with the new SmartAlarm technology tethering the Terminator operating speed to the combine, removing any alarms due to drops in the engine.
Magnet Tray for Metal Objects
Our patented Magnet Tray comes as standard because we know rocks aren't the issue, steel is.
A league of farmers
01
Efficient by design
Custom designed German manufactured spiral bevel gearbox that runs at a low 1580RPM without the complication of a cooling system.
02
Upgradeable with easy access
Designed to be easy to live with.
03
Future Proof
New mill technology stays compatible with machines. Plus mill options for tough conditions.
04
Quick, Easy Servicing
Easy-access design allows for quick, plug & play change-outs for upgrades, repairs and maintenance.
SPECIFICATIONS

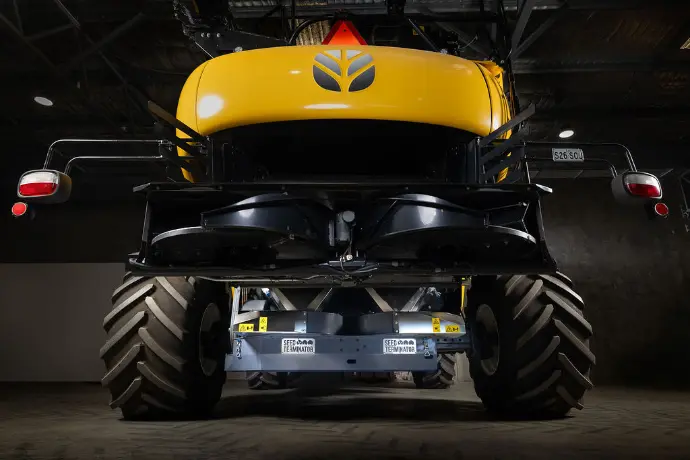

The Seed Terminator simply bolts onto the hitch.
Sorry, this platform doesn't fit 3m centres, its currently 3.5m. Please note when fitting the drive line to power the Seed Terminator, the rear tyres on New Holland combines need to be moved out to greater than 3.4m, to allow tyre clearance for turning.
The Seed Terminator includes
- Mechanical Drive
- Chassis
- Latest AeroIMPACT mill tech
- Magnet tray
- In cab monitoring system including our latest Smart Alarm technology
Installation timing on average takes a total of 20 man-hours or one 12 hour day for two people
- Seed Terminator will bolt onto the rear hitch plate.
- The PTO output pulley needs to be changed to the pulley provided in the Seed Terminator Kit.
- Drive modifications vary depending on the chopper option selected.
- When fitting the drive line to power the Seed Terminator, the rear tyres on New Holland combines need to be moved out to at least 3.4m, to allow tyre clearance for turning.
The Seed Terminator comes with our 12 month driveline warranty and a 12 month warranty period covering all components other than wear items so there's nothing holding you back. From the Original Equipment Manufacturer (OEM) the Seed Terminator is looked at as an attachment and the warranty will not be affected by the installation of the Seed Terminator.
